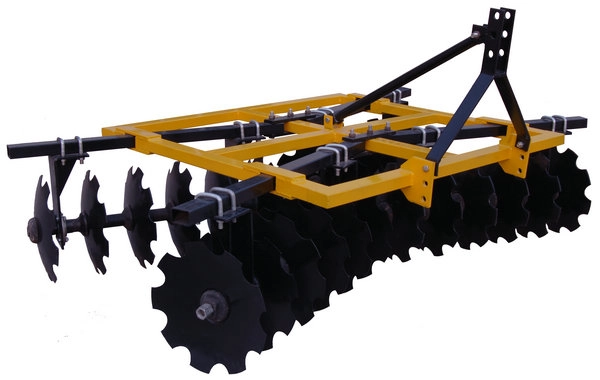

Trailed/ Medium Type Mounted Disc Harrow

Advantages:

l It is a amphibious disc harrow for 30-120hp 4-wheels tractor.

l The disc blade can be flat or notched for your need.

l The working depth can be adjusted freely.


  Contact Now
Product Details

This kind of trailed and mounted disc harrow is specially designed , manufactured and borrowed according the features of foreign disc plough,, it is mounted or trailed with tractor in you different need. This medium disc harrow  can be used as tillage machine instead of plow on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil , the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.

Model

Unit

1BJ-6-6

1BJ-7-7

1BJ-8-8

1BJ-9-9

1BJ-10-10

1BJ-11-11

1BJ-12-12

Working width

mm

1400

1600

1800

2000

2300

2500

2700

Working depth

mm

140

Q’ty of disc


12

14

16

18

20

22

24

Total weight

kg

440

490

550

590

620

650

720

Matched power

hp

30

40

50-60

60-70

70-80

80-100

90-110

Linkage


three point suspension I type/ trailed

Three-point suspension II type /Trailed




Product form
