Tractor implements farm disc plough 26inch 3 disc blade disc plow

PRODUCT SHOW:



Tractor implements farm disc plough 26inch 3 disc blade disc plow







Tractor implements farm disc plough 26inch 3 disc blade disc plow



Tractor implements farm disc plough 26inch 3 disc blade disc plow



Tractor implements farm disc plough 26inch 3 disc blade disc plow



Tractor implements farm disc plough 26inch 3 disc blade disc plow



Tractor implements farm disc plough 26inch 3 disc blade disc plow



Tractor implements farm disc plough 26inch 3 disc blade disc plow



Tractor implements farm disc plough 26inch 3 disc blade disc plow



OUR OTHER PRODUCTS

Tractor implements farm disc plough 26inch 3 disc blade disc plow

CETIFICATES

Tractor implements farm disc plough 26inch 3 disc blade disc plow



Yucheng HengShing Machinery Co. Ltd

Yucheng HengShing Machinery Co. Ltd, is a professional agricultural implements manufacturer with rich production and exporting experience. Matched with 12-200hp four wheels tractors, our main products include Disc Plough, Disc Harrow, Share Plow, Rotary Tiller, Grass Mower, Hay Rake, Subsoiler, Land Grader, Fertilizer Spreader, Corn Thresher, Farm Trailer, Boom Sprayer, Disc Blade, Casting Parts and so on. These farm implements and spare parts are exported to 70 countries and regions worldwide including Switzerland, Russia, Spain, Hungary, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, etc.



  Contact Now
Product Details

Product descriptions from the supplier

Overview



PRODUCT DESCRIPTION

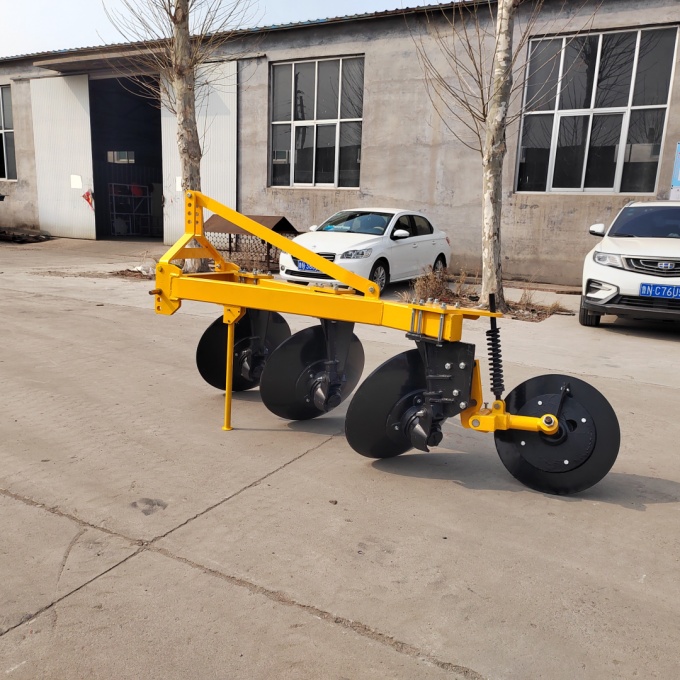

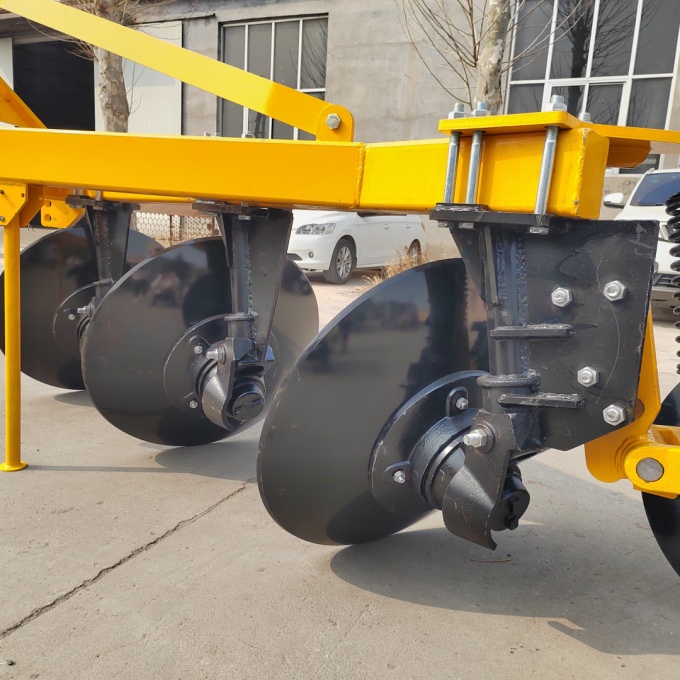

This Tractor implements farm disc plough 26inch 3 disc blade disc plow  is standard 3 point mounted with tractors from 30 to 150hp. It is revolving to furrow the land during operation. The 3 point hitch disc plough is especially suitable for land which has weeds, stems and frictional soil with small brick etc. and the disc plough also have other

models for bigger tractors from 60hp to 200hp.

Advantages and Technical Specification:
1).This tractor disc plough has the feature of not winding grass, not block and no hip building-up.
2).The mounted disc plough is easy to cut off stems and roots.
3). Less working resistance.

4). Disc's material is Boront steel high hardness and toughness.
5). It is a standard mounted disc plough for all 4-wheel tractors.



TECHNICAL SPECIFICATION

Model

Unit

1LYQ-320

1LYT-325

1LYT-425

1LYT-525

1LYT-625

Working width

mm

600

750

1000

1250

1500

Working depth

mm

200

250

250

250

250

Q’ty of disc

pc

3

3

4

5

6

Total weight

kg

200

410

90-120

120-150

160-200

Matched tractor power

HP

30-50

60-100

 90-120

130-160

 ≥170

Linkage type


                                         Tractor 3 point hitch




Product form
