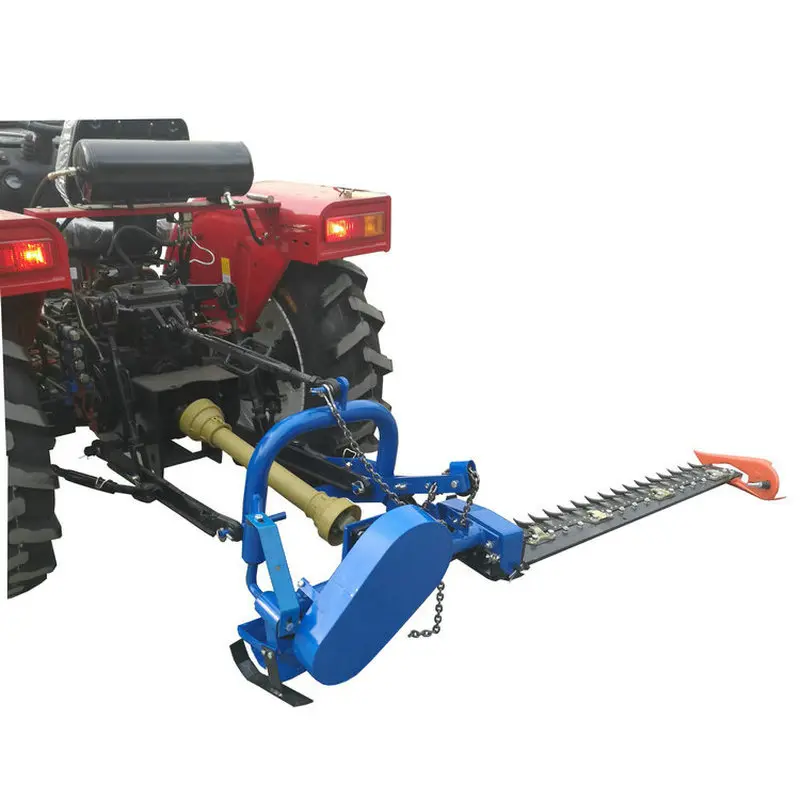

Sickle Bar Mower

Advantages:

This mower is a 3-point pitch sickle bar mower.

Double knife cutter bars have the advantage of a dynamic balance achieved by having two exactly similar knives reciprocate in opposite directions thereby generating less vibration than single knife cutter bars.

Contact Now

Product Details

Model 9G series of sickle bar mower takes advantage of the offset crank link mechanism to drive the cutter blade mow grass, and it is adequate for cutting the natural and planted grasses in ranch, mountain and hilly area. The structure of this machine is compact and the operation is easy and reliable and the residues is lower after cutting.

Model	unit	9G-1.4	9G-1.6	9G-1.8	9G-2.1
Working width	mm	1400	1600	1800	2100
Working depth	mm	50-80
PTO Rotation speed	r/min	540
PTO shaft spline		6 spline
Total weight	kg	120	124	128	135
Matched power	hp	12-20	15-20	20-30	20-30
Linkage		Three-point suspension I type
