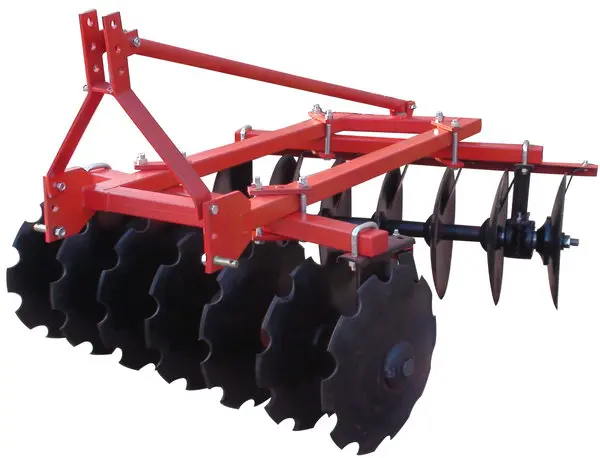

Opposed light disc harrow for sale

Advantages:

l It is a mounted opposed light disc harrow for 30-60hp.

l High efficiency

l strong ability of soil pulverization

l The tractor without deflective trailed force

l The working depth of this mounted light disk harrow can be adjusted freely though adjust the angle between the disc frame.


  Contact Now
Product Details

1BQD Series Opposed disc harrow is mainly for the cleaning stubble before tillage,breaking the hardened surface ,soil pulverization and leveling .

Model

Unit

1BQD-1.6

1BQD-2.0

1BQD-2.4

Working width

mm

1600

2000

2400

Working depth

mm

140

Q’ty of disc


16

20

24

Total weight

kg

460

490

520

Matched power

hp

30

40

50-60

Linkage


Three-point suspension I type

Three-point suspension II type


Product form
