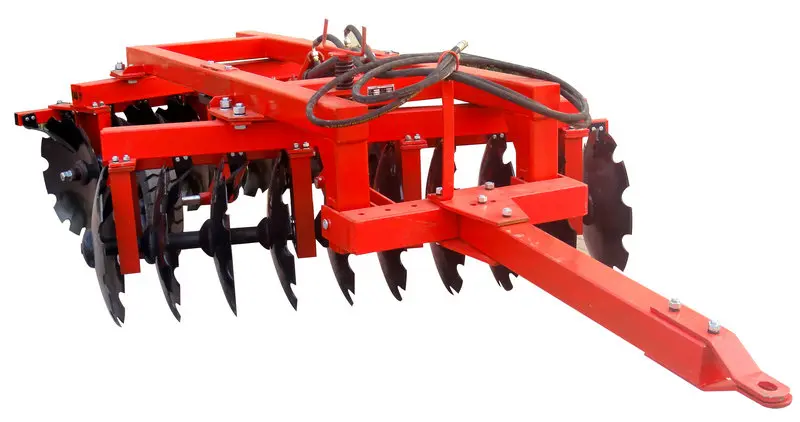

Trailed Offset Light Disc Harrow

Advantages:

It is a trailed light disc harrow for 80-100hp tractor.

This offset disc harrow has own hydraulic system to lift and down the transport rubber tire freely.

Has the Rubber tire to move easily.

Fit the scraper for each disc blade to clean the objects.

The working depth can be adjusted freely.

Contact Now

Product Details

Disc harrow is mainly applicable to clean the crop residue before tillage, break the hardened a break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land.

It can be used as tillage machine instead of plough on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil , the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.

Model	Unit	1BQ-3.4
Working width	mm	3400
Working depth	mm	120
Q’ty of disc		42
Total weight	kg	1100
Matched power	hp	80-100
Linkage		Trailed(trailed hole diameter 38mm) ;hydraulic output 1 type(difunctional oil cylinder),oil connection in 1/2” thread
