Advantages:

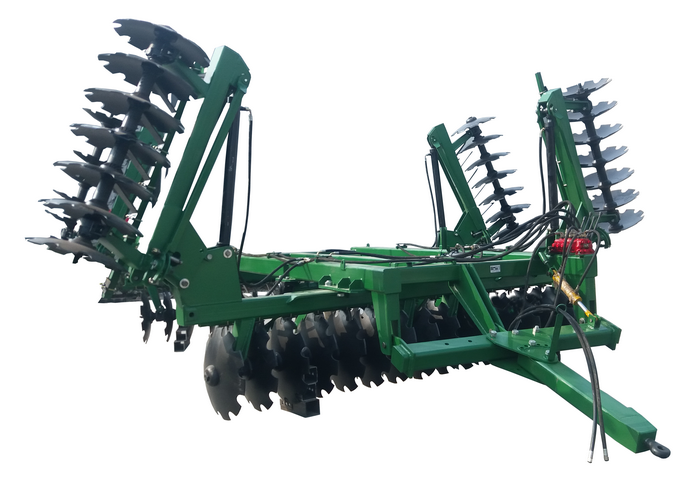

l It is a trailed hydraulic offset disc harrow for 80-200hp tractor such as YTO,JOHNDEER tractor.
l This hydraulic trailed heavy disk harrow is designed in the standard, of Europe.
l With high strength, good seal, the advantages of long life products.
l More strong harrow frame and to be in long working life.
l Unique design of bearing assembly can keep good seal.
l The disc blades are for 65Mn steel and the diameter of plough disc can be 710x8mm.
Item | HSTAY6075 |
Working width | 7500mm |
Working depth | 250-300mm |
No. of discs | 60 pcs |
Disc dimension | 660*6mm |
Bearing | Bearing assembly type, 中孔43, 圆轴42 |
Total weight | 6100kg |
Matched tractor power | 240hp |
Linkage | Trailed |
