Finger Disc Rake

Advantages:

It is 3-point pitch mounted hay rake for 4wheel tractor.

This tractor hay rake has 65Mn rake tines

The nos of tine plates 4-8 to meet different condition of farm field.


  Contact Now
Product Details

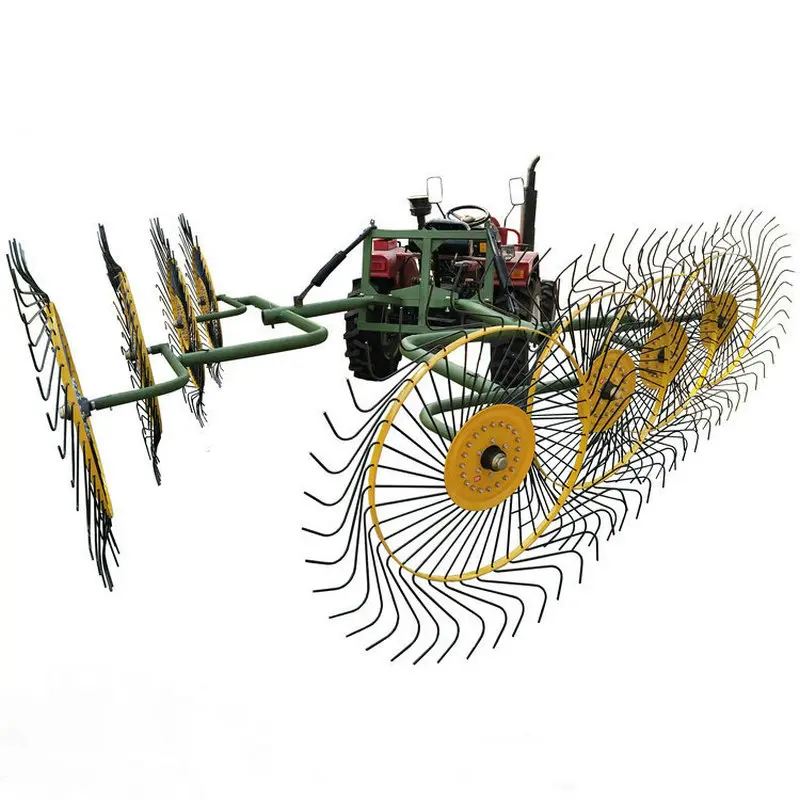

This series of hay rake is mounted on the 4wheel tractor,  the material of tine is 65Mn spring steel to keep durable. this machine has simple structure, convenient operation and reliable use, less failure and high efficiency.  operation quality Maintenance is simple, dynamic performance is good. Both can hug grass, and ted the grasses. This hay rake could be used together with our lawn mower, it can rake the three grass swath which cut to be a even one that is helpful for the subsequent bundling work.

Model

Unit

9GLZ-3.0

9GLZ-4.0

9GLZ-4.8

Working width

mm

3000

4000

4800

Collecting width of grass


1~1.5

Diameter of tine plate


1460

Nos of tine


4

6

8

Total weight

kg

200

295

345

 Matched power

hp

20-30

30-50

50-80

 Linkage


Three-point suspension

hay rake eight wheels.jpg



Product form
