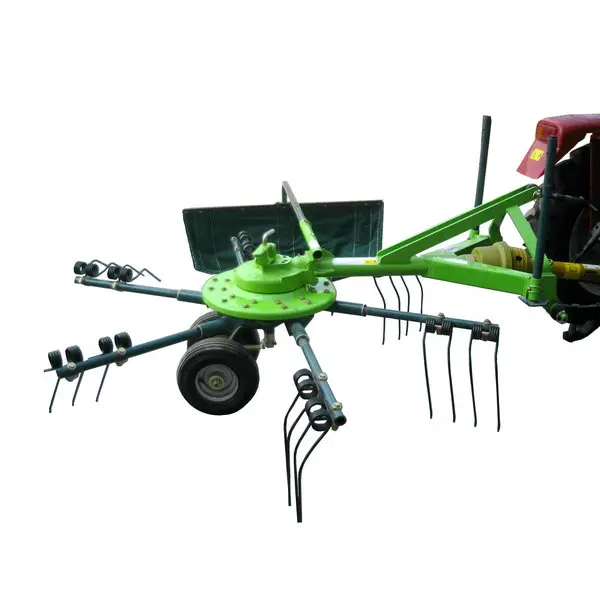

farm machinery Hay rake matched with a small tractor

Advantages:

l It is a tractor mounted hay rake.

l This farm hay rake is collecting the pasture alfalfa etc.

l The tractor hay rake has own hydraulic system to realize the lift and rise.

l The tine is for 65Mn spring steel, the diameter could be 7mm-8mm


  Contact Now
Product Details

9GL hay rake, matching with a small four-wheel tractor, is mainly used for the hay collecting operations after mowing. The implement adopts a hydraulic overturning mechanism and spring steel rake fingers. During the working process, the rake fingers can be overturned by the hydraulic overturning mechanism so as to realize the offloading of the hay.

Model

Unit

9GL-1.4

9GL-1.6

9GL-1.8

9GL-2.1

Working width

mm

1400

1600

1800

2100

Total weight

kg

90

95

100

110

Matched power

hp

15-30

Linkage


2 point to support , tipping single action oil cylinder oil connection in 1/2thread
