Easy to use heavy duty double way disc plough for sale

Yucheng HengShing Machinery Co. Ltd

Yucheng HengShing Machinery Co. Ltd, is a professional agricultural implements manufacturer with rich production and exporting experience. Matched with 12-200hp four wheels tractors, our main products include Disc Plough, Disc Harrow, Share Plow, Rotary Tiller, Grass Mower, Hay Rake, Subsoiler, Land Grader, Fertilizer Spreader, Corn Thresher, Farm Trailer, Boom Sprayer, Disc Blade, Casting Parts and so on. These farm implements and spare parts are exported to 70 countries and regions worldwide including Switzerland, Russia, Spain, Hungary, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, etc.

Contact Now

Product Details

---Product Description----

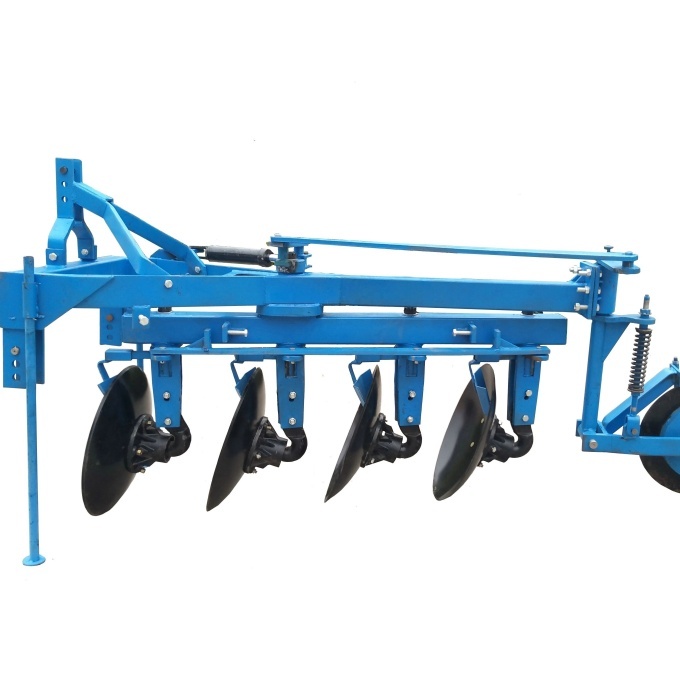

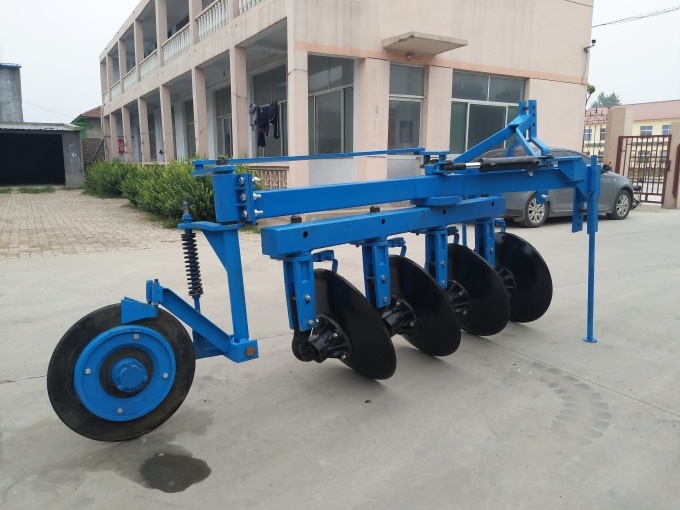

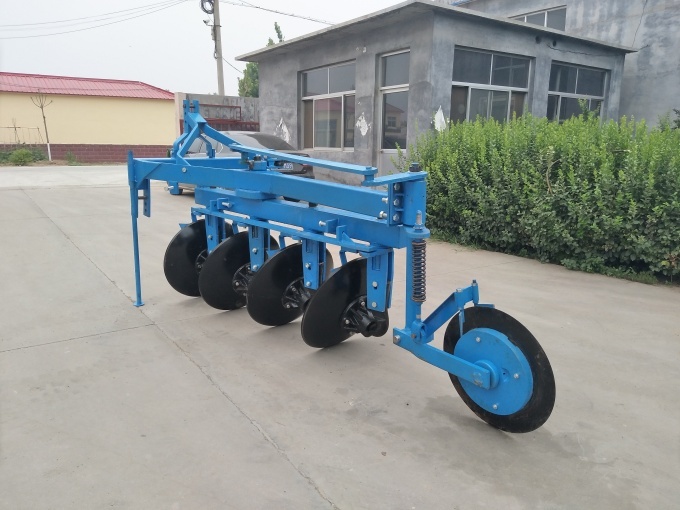

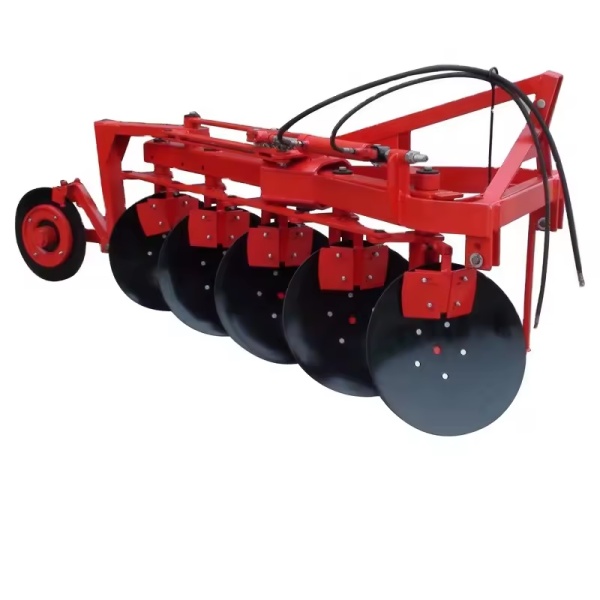

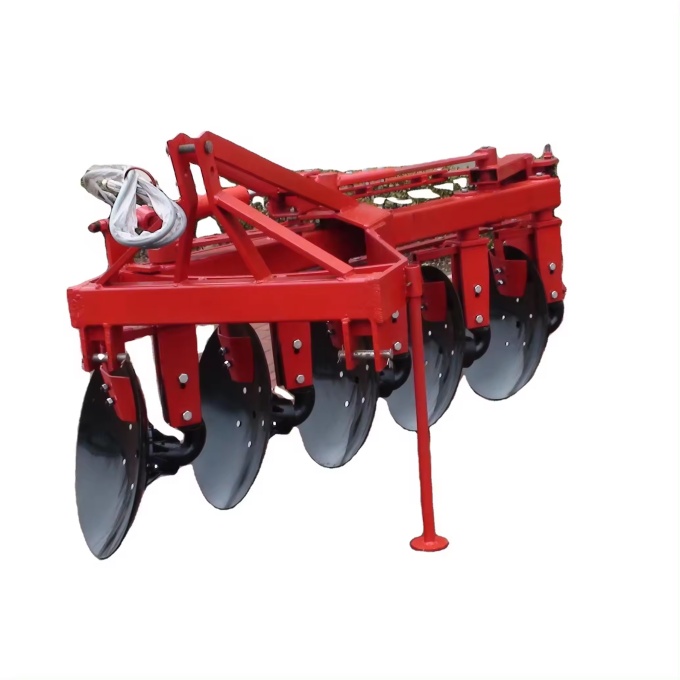

1LY(SX) Series Hydraulic reversible disc plough is matched with four wheel tractor,the discs of plough are revolving to furrow the land during operation.,it can come true the plowing work in double way. Especially suitable for the operation in the land which have the weeds, stems, frictional soil , small brick .

Advantages:

l It is hydraulic double-way disk plough for 4-wheel tractor

l Has Less idle stroke

l Less working resistance when operated

l This Double Way tractor disc plough is easy to cut off stems and roots .

l No Winding grass ,no block and no hip building-up.

l This mounted hydraulic disc plough has own hydraulic system to keep the working in double way.

----Technical Specification----

Model	Unit	1LY(SX)-325	1LY(SX)-425	1LY(SX)-525
Working width	mm	750	1000	1250
Working depth	mm	250~300
Q’ty of disc		3	4	5
Total weight	kg	600	720	820
Matched power	hp	50	90-120	130-150
Linkage		Three-point suspension II type;hydraulic output(difunctional oil cylinder;oil connection in 1/2” thread
The items selectable		(M221.5/M201.5/M181.5) Scraper or oil connection (M221.5/M201.5/M181.5)
