Advantages:

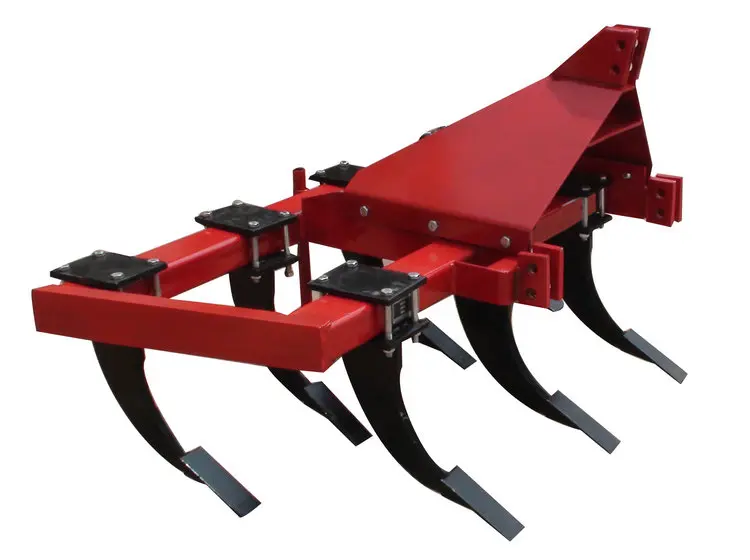

This subsoiler is a tractor mounted cultivator.
The max working depth could be 25cm, and the working width could be adjusted to meet the different soil condition.
This rotary cultivator could fitted the seeder on the tractor to finish the cultivating and seeding work together.
This subsoiler is an automatic agricultural machinery with various functions. Made up of frame, pole, plow share, soil separating board, leading bogie and strengthening tie bar. It can be installed on the left beam between the front and rear wheel. With adjustable ridge distance, automatic plow share and controllable depth; applicable for deep loosening of land and breaking up clods, matchable with seeding machine; with small turning radius, especially suitable for slope. Save fuel and labor; with good economic returns, suitable for promotion.
Model | unit | 3S-1.0 | 3S-1.4 | 3S-1.8 | 3S-2.1 | 3S-2.6 |
Working width | mm | 1000 | 1400 | 1800 | 2100 | 2600 |
Working depth | mm | 100-250 | ||||
No . of tines | 5 | 7 | 9 | 11 | 13 | |
Total weight | kg | 240 | 280 | 320 | 370 | 450 |
Matched power | hp | 25 | 40 | 50~60 | 70~80 | 80~100 |
Linkage |
Three-point suspension I type |
Three-point suspension II type |
