Agricultural machinery scraper for sale

Advantages:

l  This land grader used to mounted for 4-wheel tractor

l  This mounted farm tractor land scraper suitable for level the surface of road, farm field,clean the snow etc.

l  65Mn spring steel for blade,perfect hardness and toughness.


  Contact Now
Product Details

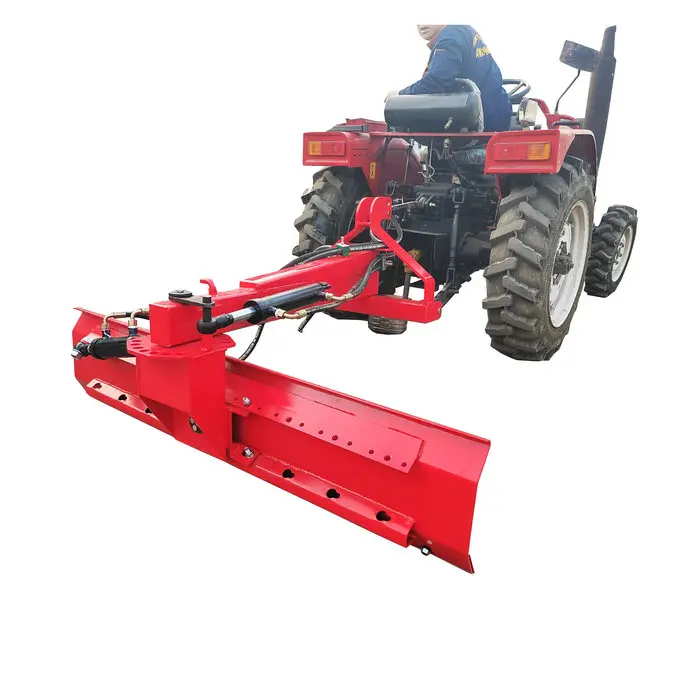

This mounted land scraper is a farm implements that uses the scraper which fitted between the front and back rear wheels to unknit land, the scraper can be lifted, sloped, revolved and extended.this machine is  Flexible and accurate, easy to use; applicable for constructing the roadbed and road surface, ditching the side slope, mixing road mixtures, removing snow, transporting grain materials and maintaining the dirt roads and gravel roads, etc. the working width: 4-8inch

Model

Unit

RBY-1.2

RBY-1.5

RBY-1.8

RBY-2.1

RBY-2.4

RBY-2.7

Working   width

mm

1200

1500

1800

2100

2400

2700

Total   Machine Weight

kg

200

220

240

260

290

310

Matched   Tractor Power

hp

20

30

40-80

50-90

70-120

90-140

Main   beam left and right swing angle

°

≥45°

≥45°

≥45°

≥45°

≥45°

≥45°

Horizontal   swing angle

°

30°

30°

30°

30°

30°

30°

Chamfer   up and down


20°

20°

20°

20°

20°

20°

Move distance to

left & right

mm

340

510

680

750

750

750

Linkage


Three-point suspension   Cat.I

Three-point suspension   Cat.II

Price


3400.00

3600.00

3800.00

4000.00

4200.00

4400.00
