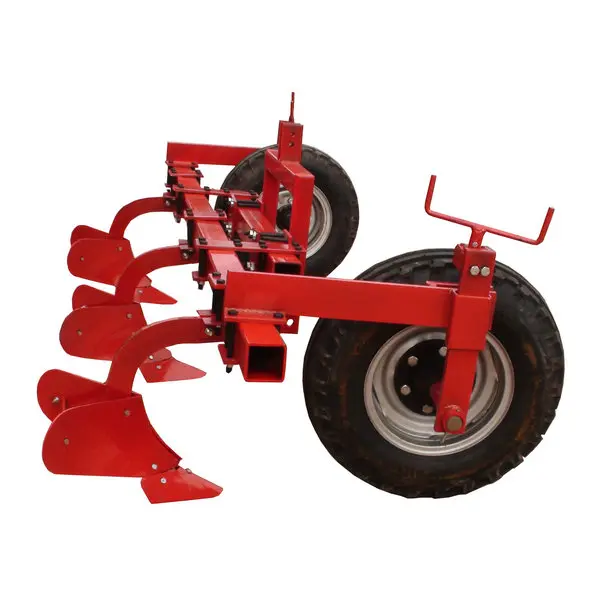

3QL series ridger plough suitable for ridging
Advantages:
l This ridging plough have own rubber tire to move easily
l The position of mounted hole could be selectable for the ridging height.
l The plow tip could be adjustable.
Product Details
3QL series ridger plough is mainly suitable for ridging after the tillage in the field for potato, beans, vegetables etc. it is convenient to adjust the angle, the high ridge and the ridging rows. It can be easily spaced (widened or narrowed) as per the crop requirement. The wings angle can be changed as per requirement.
Model | Unit | 3QL-3 | 3QL-4 | 3QL-5 |
Working width | Mm | 2500 | 3200 | 3900 |
Ridging spacing | Mm | 700~900 | ||
Ridging height | Mm | 150~250 | ||
Matched power | Hp | 60 | 80 | 100 |
Linkage | Three-point suspension II type | |||
